Keos::IRenderWindow Class Reference

Manages the target rendering window. More...

#include <KeosRenderWindow.h>

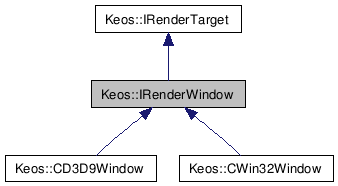

Inheritance diagram for Keos::IRenderWindow:


Public Member Functions
	IRenderWindow ()
	Default constructor.
virtual void	Create (const String &strName, uint nWidth, uint nHeight, uint nColourDepth, bool bFullScreen)=0
	Creates & displays the new window.
virtual void	Destroy (void)=0
	Destroys the window.
virtual void	Resize (uint nWidth, uint nHeight)=0
	Alter the size of the window.
virtual void	Reposition (int nLeft, int nTop)=0
	Reposition the window.
virtual bool	IsClosed (void) const =0
	Indicates whether the window has been closed by the user.
virtual void	SwapBuffers (bool bWaitForVSync=true)=0
	Swaps the frame buffers to display the next frame.
virtual bool	IsFullScreen (void) const
	Returns true if window is running in fullscreen mode.
virtual void	GetMetrics (uint &nWidth, uint &nHeight, uint &nColourDepth, int &nLeft, int &nTop)
	Overloaded version of getMetrics from RenderTarget, including extra details specific to windowing systems.
Protected Attributes
bool	m_bIsFullScreen
	Fullscreen mode.
int	m_nLeft
	Left position.
int	m_nTop
	Top position.

Detailed Description

Manages the target rendering window.

This class handles a window into which the contents of a scene are rendered. This class is abstract since there may be different implementations for different windowing systems.

Definition at line 37 of file KeosRenderWindow.h.

Constructor & Destructor Documentation

Keos::IRenderWindow::IRenderWindow ( )

Default constructor.

Definition at line 33 of file KeosRenderWindow.cpp.

Member Function Documentation

virtual void Keos::IRenderWindow::Create	(	const String &	strName,
		uint	nWidth,
		uint	nHeight,
		uint	nColourDepth,
		bool	bFullScreen
	)			`[pure virtual]`

Creates & displays the new window.

Parameters:

	strName	Name and title of the window.
	nWidth	The width of the window in pixels.
	nHeight	The height of the window in pixels.
	nColourDepth	The colour depth in bits. Ignored if fullScreen is false since the desktop depth is used.
	bFullScreen	If true, the window fills the screen.

Implemented in Keos::CD3D9Window, and Keos::CWin32Window.

Referenced by Keos::COGLRenderSystem::CreateRenderWindow(), and Keos::CD3D9RenderSystem::CreateRenderWindow().

virtual void Keos::IRenderWindow::Destroy ( void ) [pure virtual]

Destroys the window.

Implemented in Keos::CD3D9Window, and Keos::CWin32Window.

virtual void Keos::IRenderWindow::Resize	(	uint	nWidth,
		uint	nHeight
	)			`[pure virtual]`

Alter the size of the window.

Parameters:

	nWidth	The new width.
	nHeight	The new height.

Implemented in Keos::CD3D9Window, and Keos::CWin32Window.

virtual void Keos::IRenderWindow::Reposition	(	int	nLeft,
		int	nTop
	)			`[pure virtual]`

Reposition the window.

Parameters:

	nLeft	The new left position.
	nTop	The new top position.

Implemented in Keos::CD3D9Window, and Keos::CWin32Window.

virtual bool Keos::IRenderWindow::IsClosed ( void ) const [pure virtual]

Indicates whether the window has been closed by the user.

Implemented in Keos::CD3D9Window, and Keos::CWin32Window.

Referenced by Keos::IRenderSystem::UpdateAllRenderTargets().

virtual void Keos::IRenderWindow::SwapBuffers ( bool bWaitForVSync = true ) [pure virtual]

Swaps the frame buffers to display the next frame.

Parameters:

bWaitForVSync

If true, the system waits for the next vertical blank period (when the CRT beam turns off as it travels from bottom-right to top-left at the end of the pass) before flipping. If false, flipping occurs no matter what the beam position. Waiting for a vertical blank can be slower (and limits the framerate to the monitor refresh rate) but results in a steadier image with no 'tearing' (a flicker resulting from flipping buffers when the beam is in the progress of drawing the last frame).

Implemented in Keos::CD3D9Window, and Keos::CWin32Window.

Referenced by Keos::IRenderSystem::UpdateAllRenderTargets().

bool Keos::IRenderWindow::IsFullScreen ( void ) const [inline, virtual]

Returns true if window is running in fullscreen mode.

Definition at line 119 of file KeosRenderWindow.h.

References m_bIsFullScreen.
