Keos::CBuffer< T > Class Template Reference

Wrapper manipulating the buffers (VB/IB/. More...

#include <KeosBuffer.h>

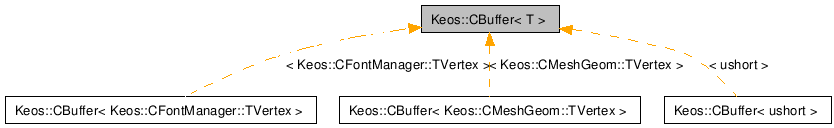

Inheritance diagram for Keos::CBuffer< T >:

[legend]List of all members.

Public Member Functions
	CBuffer (IBufferBase *pBuffer=NULL)
	Default constructor.
T *	Lock (ulong nOffset=0, ulong nSize=0, ulong nFlags=0)
	Lock the buffer.
void	Unlock ()
	Unlock the buffer.
void	Fill (const T *pData, size_t nCount)
	Fill the buffer.
void	Release ()
	Destroy the buffer.
const IBufferBase *	GetBuffer () const
	Return pointer on the buffer.
ulong	GetCount () const
	Return the number of elements in the buffer.

---

Detailed Description

template<class T>
class Keos::CBuffer< T >

Wrapper manipulating the buffers (VB/IB/.

..).

Definition at line 34 of file KeosBuffer.h.

---

Constructor & Destructor Documentation

template<class T>

Keos::CBuffer< T >::CBuffer

(

IBufferBase *

pBuffer = NULL

)

[inline]

Default constructor.

Parameters:

pBuffer

Pointer on the intern buffer.

Definition at line 87 of file KeosBuffer.h.

---

Member Function Documentation

template<class T>

T * Keos::CBuffer< T >::Lock	(	ulong	nOffset = 0,
		ulong	nSize = 0,
		ulong	nFlags = 0
	)			[inline]

Lock the buffer.

Parameters:

	nOffset	Lock position.
	nSize	Number of elements to be locked.
	nFlags	Lock options.

Returns:

Pointer on the data locked.

Definition at line 93 of file KeosBuffer.h.

Referenced by Keos::CBuffer< T >::Fill().

template<class T>

void Keos::CBuffer< T >::Unlock

(

)

[inline]

Unlock the buffer.

Definition at line 100 of file KeosBuffer.h.

Referenced by Keos::CBuffer< T >::Fill().

template<class T>

void Keos::CBuffer< T >::Fill	(	const T *	pData,
		size_t	nCount
	)			[inline]

Fill the buffer.

Parameters:

	pData	Pointer on the data.
	nCount	Number of elements to be copied.

Definition at line 107 of file KeosBuffer.h.

References Assert, Keos::CBuffer< T >::Lock(), and Keos::CBuffer< T >::Unlock().

Referenced by Keos::IRenderSystem::CreateIndexBuffer(), and Keos::IRenderSystem::CreateVertexBuffer().

template<class T>

void Keos::CBuffer< T >::Release

(

)

[inline]

Destroy the buffer.

Definition at line 118 of file KeosBuffer.h.

template<class T>

const IBufferBase * Keos::CBuffer< T >::GetBuffer

(

)

const [inline]

Return pointer on the buffer.

Returns:

Pointer on the data.

Definition at line 125 of file KeosBuffer.h.

Referenced by Keos::IRenderSystem::SetIndexBuffer(), and Keos::IRenderSystem::SetVertexBuffer().

template<class T>

ulong Keos::CBuffer< T >::GetCount

(

)

const [inline]

Return the number of elements in the buffer.

Returns:

Buffer size.

Definition at line 132 of file KeosBuffer.h.

Referenced by Keos::IRenderSystem::SetVertexBuffer().

---

The documentation for this class was generated from the following file:

• KeosEngine/KeosBuffer.h

---
